Consumers

Kafka Consumer

Pull Model (Not Push)

• Consumers read data from a topic (identified by name) — pull model
• Consumers automatically know which broker to read from
• In case of broker failures, consumers know how to recover

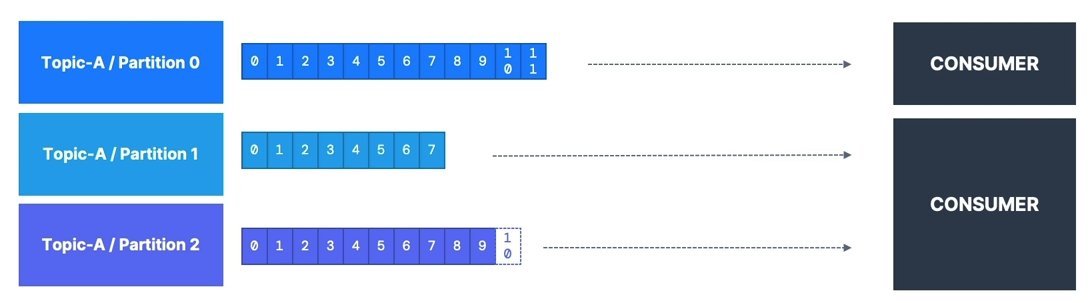

• Data is read in order from low to high offset within each partition

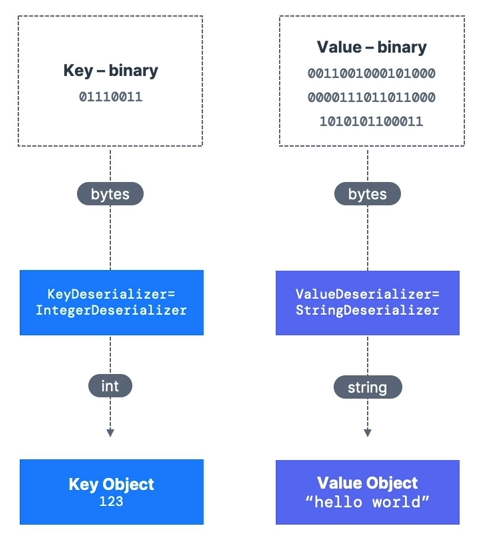

Deserialization

• Deserialize indicates how to transform bytes into objects/data
• Applied to both the value and the key of the message
• Common Deserializers:
  • String (including JSON)
  • Int, Float
  • Avro
  • Protobuf
• The serialization/deserialization type must not change during a topic’s lifecycle
  • If needed, create a new topic instead

Consumer Groups

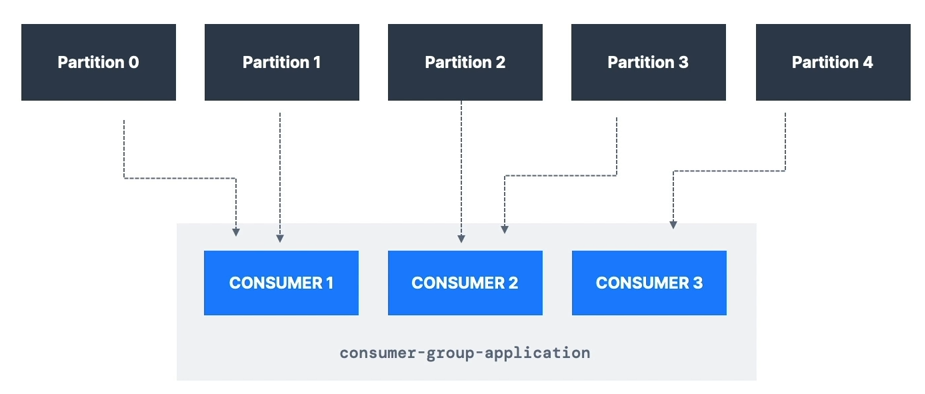

• All consumers in an application read data as part of a consumer group
• Each consumer within a group reads from exclusive partitions

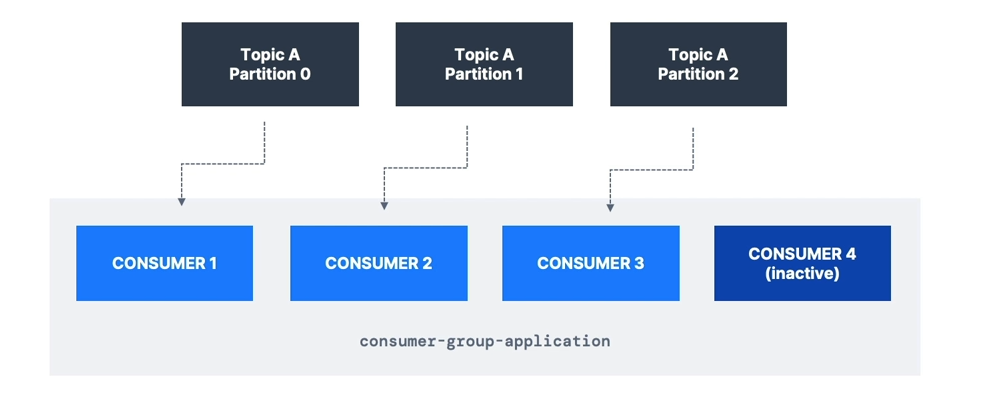

• If you have more consumers than partitions, some consumers will be inactive

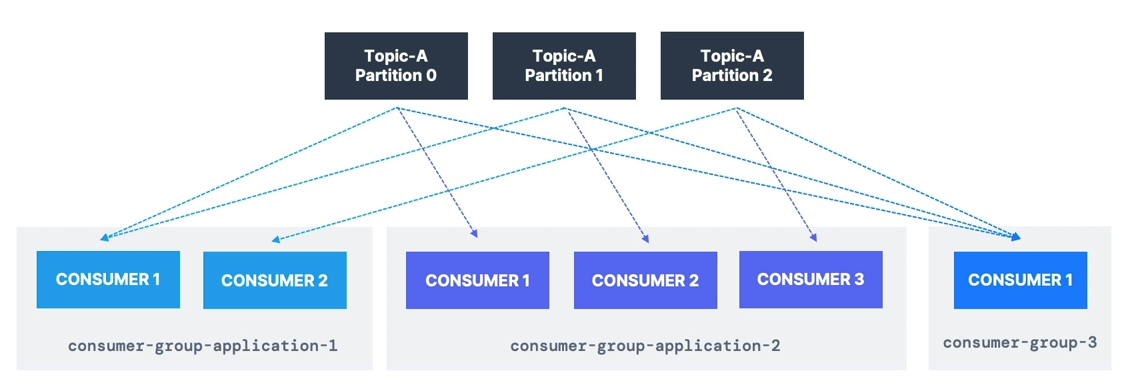

• Apache Kafka allows multiple consumer groups to read from the same topic
• To create distinct consumer groups, use the consumer property: group.id=<your-group-name>

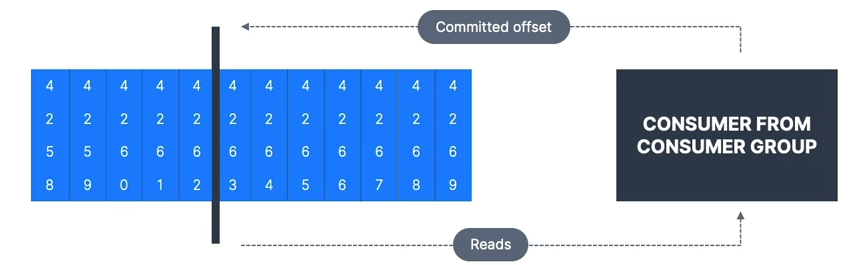

Consumer Offsets

• Kafka stores the offsets for each consumer group in the internal topic:
  • __consumer_offsets
• When a consumer processes data, it should periodically commit offsets
  • The Kafka broker writes to __consumer_offsets (not the consumer group itself)
• If a consumer dies, it can resume from its last committed offset

Delivery Semantics

• Default: Java Consumers automatically commit offsets (at least once)
• Manual commit options:
  1. At least once (preferred)
     • Commit offsets after processing the message
     • If processing fails, the message will be read again
     • Can cause duplicate processing, so ensure processing is idempotent
  2. At most once
     • Commit offsets as soon as messages are received
     • If processing fails, messages will be lost
  3. Exactly once
     • Kafka → Kafka: Use Transactional API (easy with Kafka Streams API)
     • Kafka → External System: Use an idempotent consumer

CLI Examples

1. Consume from the tail of the topic
2. Consume from the beginning of the topic
3. Show both key and values in the output
4. Learn about --group parameter
5. Observe how partitions are split among multiple CLI consumers
6. List consumer groups

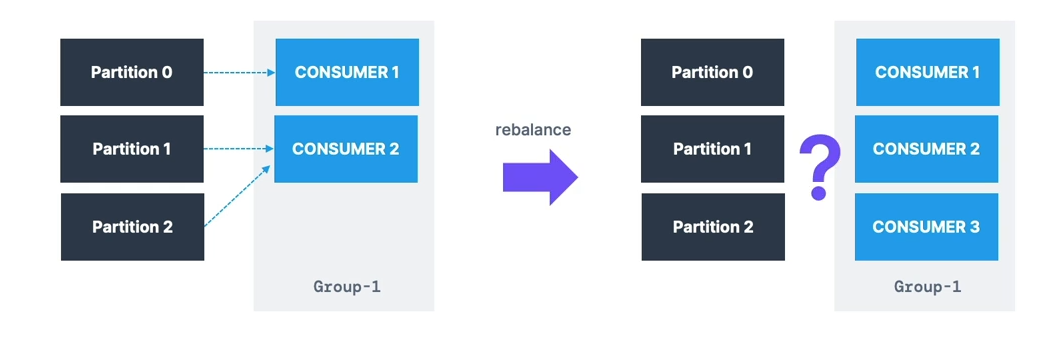

Consumer Groups & Partition Rebalance

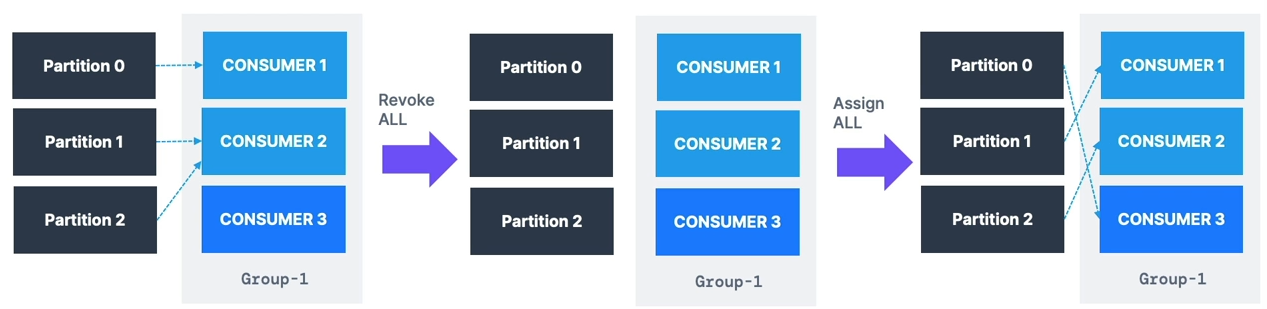

Eager Rebalance

• All consumers stop and give up their partition assignments
• Consumers rejoin the group and get new partitions
• Short period where no consumers process data
• Consumers may not get back their previous partitions

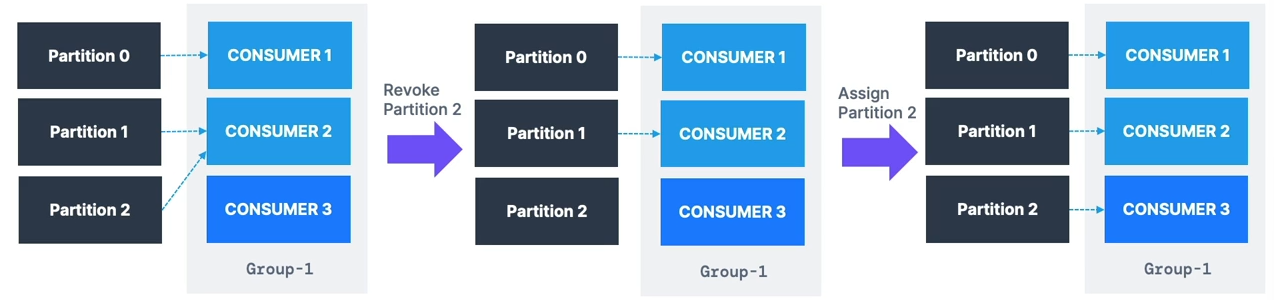

Cooperative Rebalance (Incremental Rebalance)

• Only a subset of partitions is reassigned
• Consumers without reassigned partitions keep processing
• Multiple iterations may occur to achieve stability
• Avoids stop-the-world pauses Partition Assignment Strategies:
• RangeAssignor — per-topic basis; can lead to imbalance
• RoundRobinAssignor — spreads partitions across all topics for optimal balance
• StickyAssignor — like RoundRobin but minimizes partition movement when consumers join/leave
• CooperativeStickyAssignor — supports cooperative rebalances so consumers keep processing Defaults:
• [RangeAssignor, CooperativeStickyAssignor]
  • Starts with RangeAssignor but can upgrade to CooperativeStickyAssignor with a rolling restart

Less disruptive rebalancing is recommended.

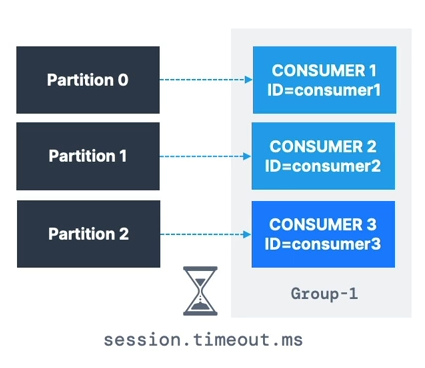

Static Group Membership

• By default, when a consumer leaves a group:
  • Partitions are revoked and reassigned
  • On rejoining, it gets a new member ID and different partitions
• Setting group.instance.id makes the consumer a static member
  • If it leaves, it has up to session.timeout.ms to rejoin and keep its partitions
  • Prevents unnecessary rebalances and helps maintain local state/cache

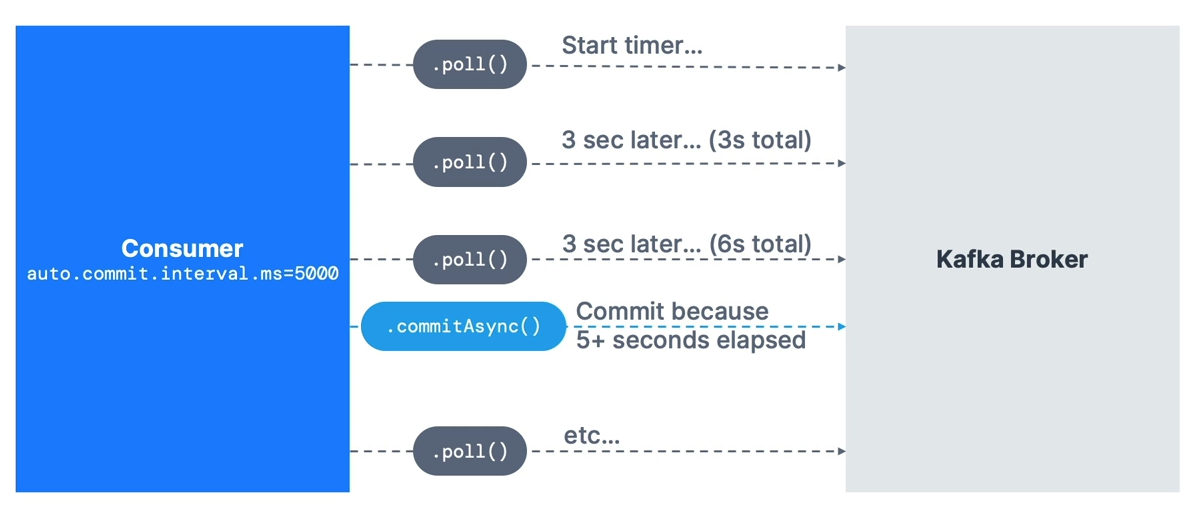

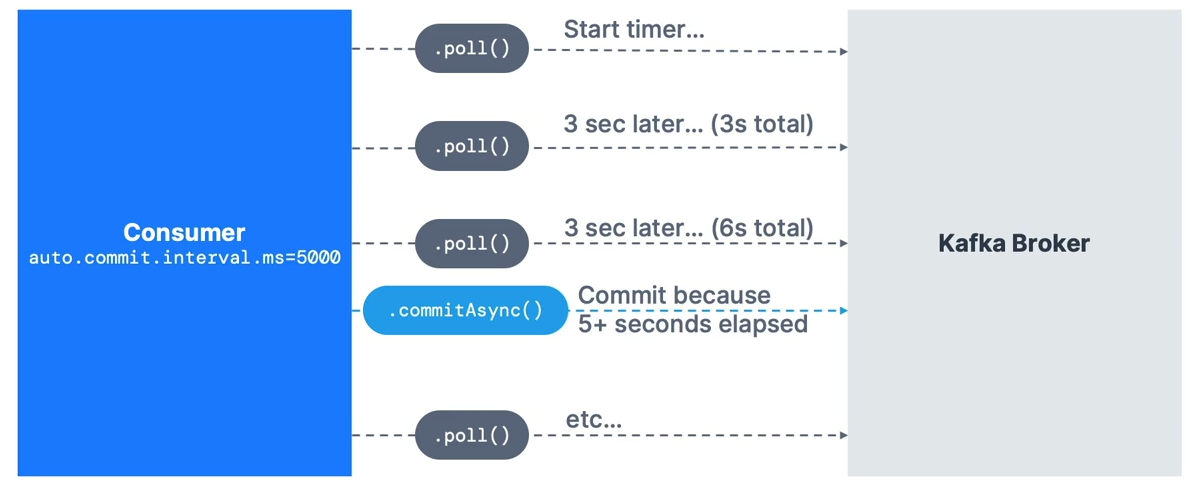

Auto Offset Commit Behaviour

• In Java Consumer API, offsets are committed regularly
• Enables at-least-once delivery by default (under certain conditions)
• Offsets are committed when:
  • .poll() is called
  • auto.commit.interval.ms has elapsed
• Example: enable.auto.commit=true and auto.commit.interval.ms=5000
• Ensure messages are processed before calling .poll() again
• For advanced control:
  • Disable enable.auto.commit
  • Process messages in a separate thread
  • Commit offsets manually using .commitSync() or .commitAsync()

Resetting offset

    public static void main(String[] args) {
        log.info("I am a Kafka Consumer!");

        String groupId = "my-java-application";
        String topic = "demo_java";

        // create Producer Properties
        Properties properties = new Properties();

        // connect to Localhost
//        properties.setProperty("bootstrap.servers", "127.0.0.1:9092");

        // connect to Conduktor Playground
        properties.setProperty("bootstrap.servers", "cluster.playground.cdkt.io:9092");
        properties.setProperty("security.protocol", "SASL_SSL");
        properties.setProperty("sasl.jaas.config", "org.apache.kafka.common.security.plain.PlainLoginModule required username=\"your-username\" password=\"your-password\";");
        properties.setProperty("sasl.mechanism", "PLAIN");

        // create consumer configs
        properties.setProperty("key.deserializer", StringDeserializer.class.getName());
        properties.setProperty("value.deserializer", StringDeserializer.class.getName());
        properties.setProperty("group.id", groupId);
        properties.setProperty("auto.offset.reset", "earliest");

        // create a consumer
        KafkaConsumer<String, String> consumer = new KafkaConsumer<>(properties);

        // subscribe to a topic
        consumer.subscribe(Arrays.asList(topic));

        // poll for data
        while (true) {

            log.info("Polling");

            ConsumerRecords<String, String> records =
                    consumer.poll(Duration.ofMillis(1000));

            for (ConsumerRecord<String, String> record: records) {
                log.info("Key: " + record.key() + ", Value: " + record.value());
                log.info("Partition: " + record.partition() + ", Offset: " + record.offset());
            }


        }


    }

    public static void main(String[] args) {
        log.info("I am a Kafka Consumer!");

        String groupId = "my-java-application";
        String topic = "demo_java";

        // create Producer Properties
        Properties properties = new Properties();

        // connect to Localhost
//        properties.setProperty("bootstrap.servers", "127.0.0.1:9092");

        // connect to Conduktor Playground
        properties.setProperty("bootstrap.servers", "cluster.playground.cdkt.io:9092");
        properties.setProperty("security.protocol", "SASL_SSL");
        properties.setProperty("sasl.jaas.config", "org.apache.kafka.common.security.plain.PlainLoginModule required username=\"your-username\" password=\"your-password\";");
        properties.setProperty("sasl.mechanism", "PLAIN");

        // create consumer configs
        properties.setProperty("key.deserializer", StringDeserializer.class.getName());
        properties.setProperty("value.deserializer", StringDeserializer.class.getName());
        properties.setProperty("group.id", groupId);
        properties.setProperty("auto.offset.reset", "earliest");
        properties.setProperty("partition.assignment.strategy", CooperativeStickyAssignor.class.getName());
//        properties.setProperty("group.instance.id", "...."); // strategy for static assignments


        // create a consumer
        KafkaConsumer<String, String> consumer = new KafkaConsumer<>(properties);

        // get a reference to the main thread
        final Thread mainThread = Thread.currentThread();

        // adding the shutdown hook
        Runtime.getRuntime().addShutdownHook(new Thread() {
            public void run() {
                log.info("Detected a shutdown, let's exit by calling consumer.wakeup()...");
                consumer.wakeup();

                // join the main thread to allow the execution of the code in the main thread
                try {
                    mainThread.join();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        });



        try {
            // subscribe to a topic
            consumer.subscribe(Arrays.asList(topic));
            // poll for data
            while (true) {

                ConsumerRecords<String, String> records =
                        consumer.poll(Duration.ofMillis(1000));

                for (ConsumerRecord<String, String> record : records) {
                    log.info("Key: " + record.key() + ", Value: " + record.value());
                    log.info("Partition: " + record.partition() + ", Offset: " + record.offset());
                }

            }

        } catch (WakeupException e) {
            log.info("Consumer is starting to shut down");
        } catch (Exception e) {
            log.error("Unexpected exception in the consumer", e);
        } finally {
            consumer.close(); // close the consumer, this will also commit offsets
            log.info("The consumer is now gracefully shut down");
        }


    }

Graceful shutdown

    public static void main(String[] args) {
        log.info("I am a Kafka Consumer!");

        String groupId = "my-java-application";
        String topic = "demo_java";

        // create Producer Properties
        Properties properties = new Properties();

        // connect to Localhost
//        properties.setProperty("bootstrap.servers", "127.0.0.1:9092");

        // connect to Conduktor Playground
        properties.setProperty("bootstrap.servers", "cluster.playground.cdkt.io:9092");
        properties.setProperty("security.protocol", "SASL_SSL");
        properties.setProperty("sasl.jaas.config", "org.apache.kafka.common.security.plain.PlainLoginModule required username=\"your-username\" password=\"your-password\";");
        properties.setProperty("sasl.mechanism", "PLAIN");

        // create consumer configs
        properties.setProperty("key.deserializer", StringDeserializer.class.getName());
        properties.setProperty("value.deserializer", StringDeserializer.class.getName());
        properties.setProperty("group.id", groupId);
        properties.setProperty("auto.offset.reset", "earliest");

        // create a consumer
        KafkaConsumer<String, String> consumer = new KafkaConsumer<>(properties);

        // get a reference to the main thread
        final Thread mainThread = Thread.currentThread();

        // adding the shutdown hook
        Runtime.getRuntime().addShutdownHook(new Thread() {
            public void run() {
                log.info("Detected a shutdown, let's exit by calling consumer.wakeup()...");
                consumer.wakeup();

                // join the main thread to allow the execution of the code in the main thread
                try {
                    mainThread.join();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        });



        try {
            // subscribe to a topic
            consumer.subscribe(Arrays.asList(topic));
            // poll for data
            while (true) {

                ConsumerRecords<String, String> records =
                        consumer.poll(Duration.ofMillis(1000));

                for (ConsumerRecord<String, String> record : records) {
                    log.info("Key: " + record.key() + ", Value: " + record.value());
                    log.info("Partition: " + record.partition() + ", Offset: " + record.offset());
                }

            }

        } catch (WakeupException e) {
            log.info("Consumer is starting to shut down");
        } catch (Exception e) {
            log.error("Unexpected exception in the consumer", e);
        } finally {
            consumer.close(); // close the consumer, this will also commit offsets
            log.info("The consumer is now gracefully shut down");
        }


    }

Committing Strategy for Consumers

Two most common patterns:

1. Easy: enable.auto.commit = true & synchronous batch processing.

2. Medium: enable.auto.commit = false & manual commit of offsets.

---

Auto Commit

• In the Java Consumer API, offsets are regularly committed.

• Default behavior enables at-least-once reading (under conditions).

• Offsets are committed when you call .poll() and auto.commit.interval.ms has elapsed.

• Example: auto.commit.interval.ms=5000 and enable.auto.commit=true will commit every 5 seconds.

• Ensure messages are successfully processed before calling .poll() again — otherwise, you won’t have at-least-once guarantees.

Advanced option:

• Disable enable.auto.commit and move processing to a separate thread, then call .commitSync() or .commitAsync() manually with the correct offsets.


⚠ If you don’t use synchronous processing, you’ll get at-most-once behavior because offsets are committed before processing.

---

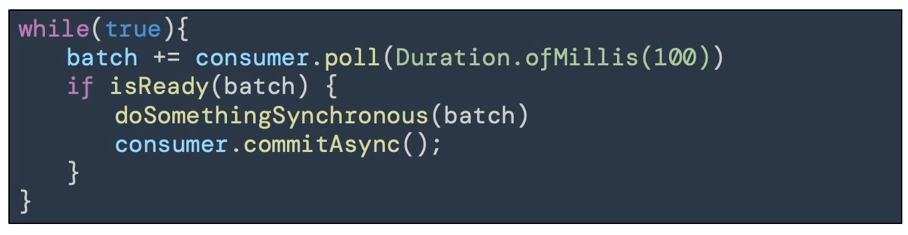

Manual Commit

Configuration:
enable.auto.commit=false & synchronous batch processing.

• You control when offsets are committed and under what conditions.

• Example: Accumulate records into a buffer → flush to a database → commit offsets asynchronously.

• Advanced: Store offsets externally and manage partition assignments manually using .seek().

Use this if:

• You need exactly-once processing and cannot achieve idempotency.

• You combine “process data” + “commit offsets” in a single transaction.

⚠ Not recommended unless you know exactly what you’re doing.

---

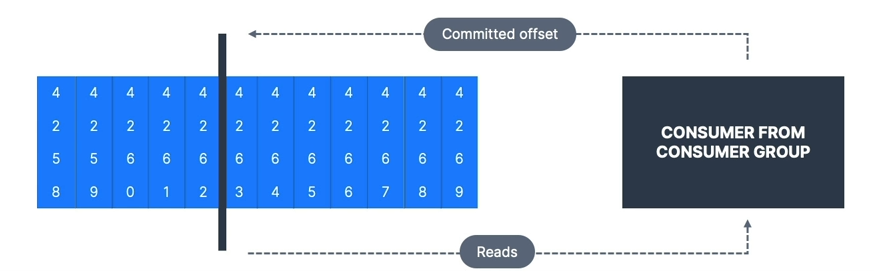

Consumer Offset Behaviour

A consumer is expected to read from a log continuously.

• If your consumer is down for longer than Kafka’s retention period (e.g., 7 days), offsets become invalid.

• Behavior when no offset is found:

  • auto.offset.reset=latest → read from the end of the log.

  • auto.offset.reset=earliest → read from the start of the log.

  • auto.offset.reset=none → throw an exception.

• Offsets can be lost if:

  • Kafka < 2.0: Consumer inactive for 1 day.

  • Kafka ≥ 2.0: Consumer inactive for 7 days.

  • Controlled by offset.retention.minutes broker setting.

---

Replaying Data for Consumers

Steps:

1. Stop all consumers from a specific group.

2. Use kafka-consumer-groups command to set offsets to the desired position.

3. Restart consumers.

Bottom line:

• Set proper data and offset retention periods.

• Ensure your auto.offset.reset setting matches your expectations.

• Use replay capability if needed.

---

Rack Awareness

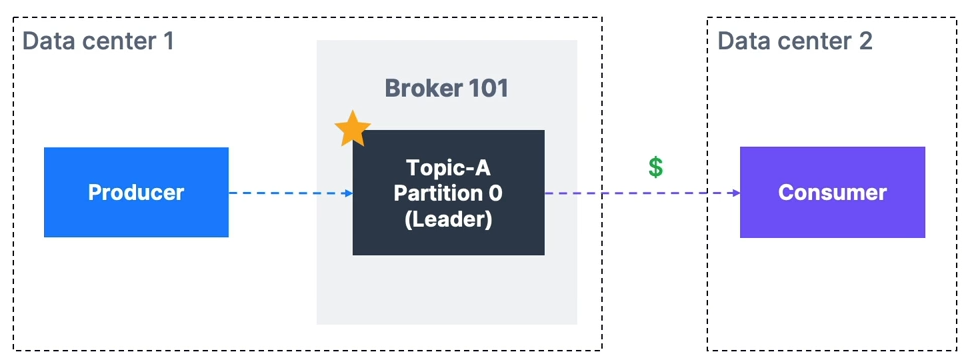

• By default, Kafka consumers read from the leader broker for a partition, which can cause higher latency and network costs (e.g., AWS cross-AZ charges).

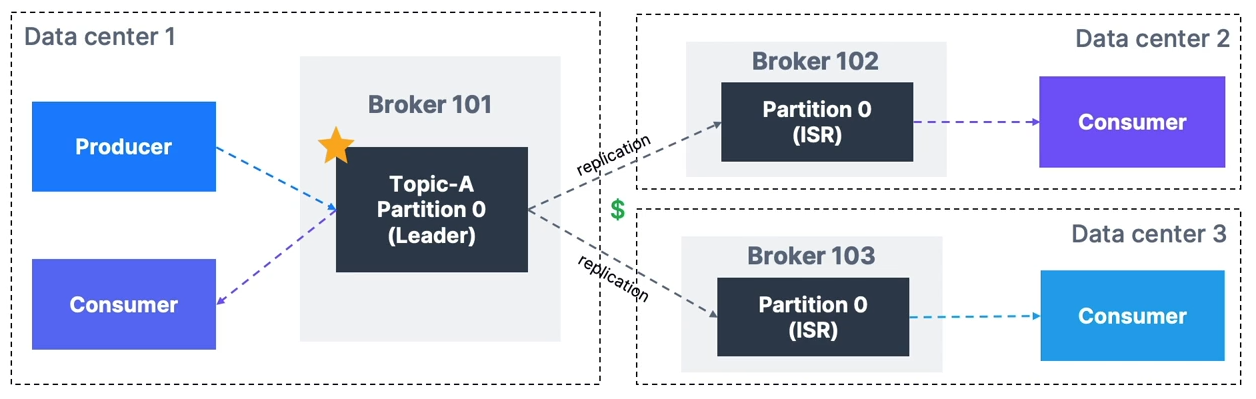

• Since Kafka 2.4, consumers can read from the closest replica, improving latency and reducing costs.


How to Set Up Rack Awareness

Broker settings:

• Kafka v2.4+ required.

• rack.id → set to data center ID (e.g., AWS AZ ID).

• Example: rack.id=usw2-az1

• replica.selector.class=org.apache.kafka.common.replica.RackAwareReplicaSelector

Consumer settings:

• Set client.rack to the data center ID where the consumer runs.

Partition Count and Replication Factor

These two parameters greatly impact performance and durability.

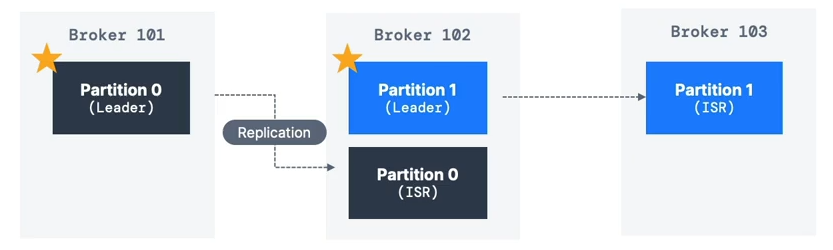

Replication Factor

• Recommended: 3 (requires at least 3 brokers).

• Trade-offs:

  • Higher RF → better durability & availability.

  • Higher RF → more latency (acks=all) & more disk usage.

Partition Count

• Each partition can handle a few MB/s throughput — measure for your setup.

• More partitions → better parallelism & throughput.

• Guidelines:

  • Small cluster: 3 × #brokers

  • Large cluster (>12 brokers): 2 × #brokers

  • Adjust for consumer parallelism and producer throughput.

• Avoid creating topics with 1000+ partitions without testing.
